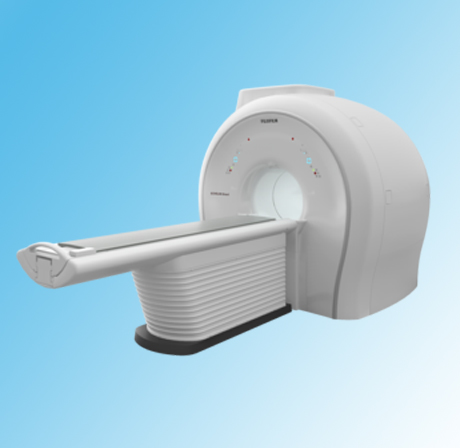

ECHELON SMART 1.5 Tesla
| ECHELON SMART 1.5 Tesla | |
| Maximum Magnetic Strength | 33mT/m |
| Maximum Slew Rate | 130 T/m/s |
| Gantry Aperture | 60cm |
| RF Output | 18kW |
| RF Receiver Channel | 16 Channels |
| Smart Technologies | SmartECO, SmartSPACE, SmartCOMFORT, SmartSPEED, SmartQUALITY |
| SmartECO | Small footprint and flexible layout |
| SmartSPACE | Softsound technolgy provides 96% reduction & offers quiet scanning |
| SmartSPEED | Autopose for Brain & Spine(Quick scan plan) Whole Body Diffusion IsoFSE - Single volume acquisition to generate isotropic images in all planes RADAR - Versatile motion artefact Reduction |
| Zero Boil off Technology | Liquid helium is not evaporated during noraml operation |
OVAL TRILLIUM 3T
"Oval Bore" in the pursuit of comfort and image quality
| TRILLIUM Oval 3T | |
| Maximum Magnetic Strength | 40 mT/m |
| Maximum Slew Rate | 200 T/m/s |
| Gantry Aperture | 74x65cm (Oval Design) |
| RF Output | 40kW |
| RF Receiver Channel | 32 Channels |
| Table Type | Dockable |
| Shimming Method | Active, High Order shimming method |

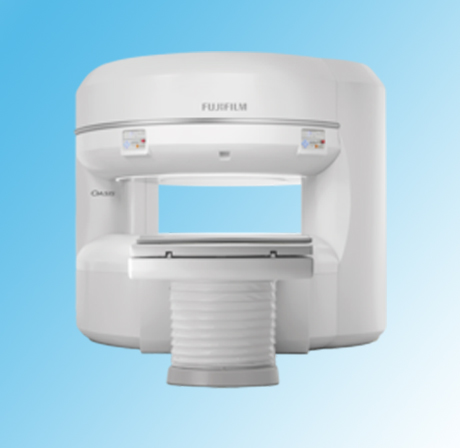

OASIS 1.2T
Oasis Open High Field Imaging
| OASIS 1.2T | |
| Maximum Magnetic Strength | 33 mT/m |
| Maximum Slew Rate | 100 T/m/s |
| Gantry Aperture | 270° Open Design |
| RF Output | 18kW |
| Smart Technologies | Smart Comfort, Smart Speed, Smart Quality |
| Magnet | Superconductive |
| Shimming Method | Active, Hight Order shimming method |
| Table Width | 82cm Wide Patient Table. |
