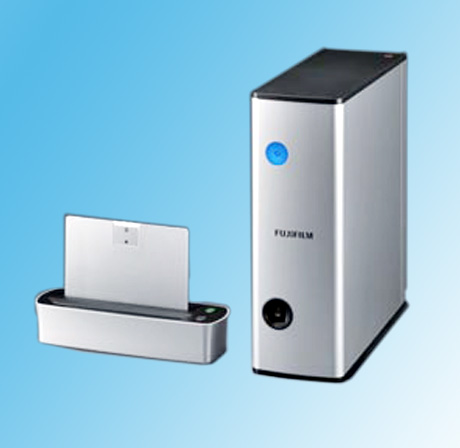

FDR D-EVO II
The endless pursuit of high image quality The new D-EVO II CsI detector, the cutting edge of the FDR D-EVO series
Fujifilm’s unique ISS technology provides high resolution images with low dose
With the CsI columnar crystal scintillator combined with the ISS system, we suppress light scattering and energy attenuation to be impossible with existing reading systems to create images with low dosages and high resolution. We have achieved a top world class 54% DQE (@ 1Lp/mm, 1mR), MTF 80% (@ 1Lp/mm, 1mR).
Fujifilm noise reduction circuit improves detector sensitivity in high absorption regions
The uniquely developed noise reduction circuit reduces noise in the image. It achieves 1.2 times the DQE of existing systems with a 0.03 mR dose. In particular, granularity of low-concentration regions such as the heart and mediastinum is dramatically improved
Image processing technology to optimize imaging results
FDR D-EVO II utilizes the latest Fujifilm digital image processing technologies including Dynamic Visualization, which optimizes image display based on monitor characteristics and FNC noise suppression processing that improves image quality, automatically extracting and separating noise components in the image.
Specification
| FDR D-EVO II C35 | FDR D-EVO II C43 | |
| Model name | Flat Panel Detector (DR-ID 1211SE) for FDR D-EVO II System (DR-ID1200) | Flat Panel Detector (DR-ID 1212SE) for FDR D-EVO II System (DR-ID1200) |
| Type | Cassette size detector with ISS (Irradiation Side Sampling system) | Cassette size detector with ISS (Irradiation Side Sampling system) |
| Scintillator | CsI (Cesium iodide) | CsI (Cesium iodide) |
| Detector external size | 460 ✕ 384 ✕ 15mm (Approx.) [18” ✕ 15” ✕ 0.6”] | |
| Weight | Approx. 2.6kg [5.7lbs.] (including battery) | Approx. 3.2kg [7.1lbs.] (including battery) |
| Pixel pitch | 0.15mm | 0.15mm |
| Pixels | 2836 ✕ 2336pixel | 2836 ✕ 2832 pixels |
| Wireless standard | IEEE 802.11n (2.4GHz, W52/W53/W56/W58) | IEEE 802.11n (2.4GHz, W52/W53/W56/W58) |
| Image preview | Less than 2sec | Less than 2sec |
| Cycle time | Less than 9sec (wired) Less than 10sec (SmartSwitch) | Less than 9sec (wired) Less than 10sec (SmartSwitch) |
| Battery recharging time | Approx. 3hours (with battery charger) Approx. 4hours (with Docking Stand) | Approx. 3hours (with battery charger) Approx. 4hours (with Docking Stand) |
| Battery performance | Standby: Approx. 4hours Sleep mode: Approx. 7h 30min Extra sleep mode: Approx. 36hours | Standby: Approx. 4hours Sleep mode: Approx. 7h 30min Extra sleep mode: Approx. 36hours |
