CT SCAN

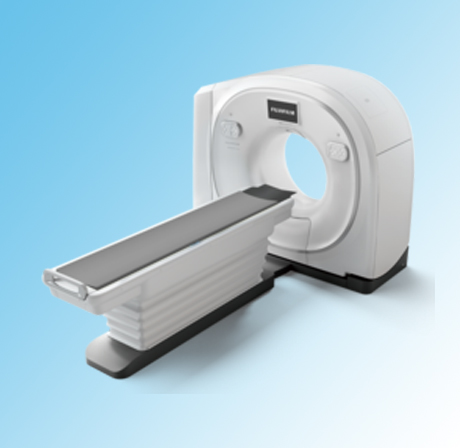

SUPRIA

Open and compact 16ch/32 Slice CT

Fujifilm Supria 32
Detector Coverage 20mm
Detector Configuration 0.625x32 rows
Wide Bore size 750mm with compact footprint
System Speed 0.8 sec & 0.75 sec
Tube Capacity 2MHU & 5 MHU*
Ct Fluoroscopy Available (Guide shot)*
Metal Artefact Reduction s/w HiMAR
Low dose Technolgy
  • Intelli IP (True Iterative recon, applies on raw & Image data)
  • Intelli EC (Applies in all x,y,z direction with SD mode)
Min. Slice thickness 0.625mm
Physical Gantry tilt ±30°
Prospective ECG Calcium Scoring Available*
Table up/down Movement Possible



SUPRIA 128

Open and compact 64ch/128 Slice CT

Fujifilm Supria 128
Detector Coverage 40mm
Detector Configuration 0.625x64 rows
Wide Bore size 750mm with compact footprint
Submm Rotation 0.75sec
Tube Capacity 3.5MHU & 5 MHU*
CT Fluoroscopy Available (Guide shot)*
Metal Artefact Reduction s/w HiMAR
Low dose Technology
  • Intelli IP(True Iterative recon applies on raw & Image data both)
  • Intelli EC (Applies in all x,y,z direction with SD mode)




SCENARIA View

128 Slice (Cardiac)

Fujifilm SCENARIA View 128 Slic (Cardiac CT)
Detector Coverage 40mm
Detector Configuration 0.625x64 rows
X-ray generator output 72kW/84kW*
Wide Bore size 800mm with compact footprint
Submm Rotation 0.35 sec (Applies to whole body scanning including Cardiac)
Tube Capacity 7.5 MHU
Cardiac Scan Prospective and Retrospective Method (Coronary angiography is possible up to 100BPM)
Shuttle Scan* Two way scan for prefusion and kinematic studies
Dual Energy Scan* Stone characterization and facilities separation of bone & metal fragments
High Pitch whole body scan 1500 mm Coverage in 8.3 Sec
Lateral Table Sliding* 200mm (Provides better resolution and uniform dose distribution in cardiac and off centered anatomy scan)
Recon speed 60 Frames/Sec
CT Fluoroscopy Available (Guide shot)*
Metal Artefact Reduction s/w HiMAR
Low dose Technology
  • Intelli IP(True Iterative recon applies on raw & Image data both)
  • Intelli EC (Applies in all x,y,z direction with SD mode)
Min. Slice Thickness 0.625mm Thickness
Physical Gantry tilt ±30°
