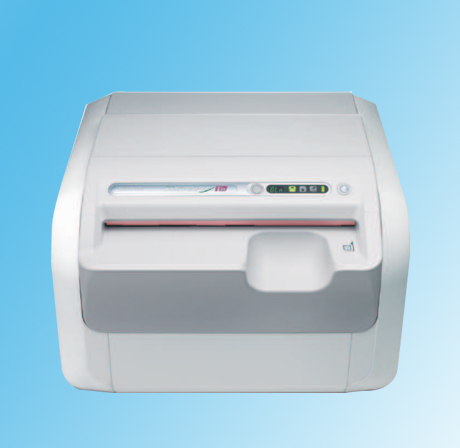

FCR PRIMA T
High-speed image processing tabletop FCR with mammography compatibility
Space-Saving Design
FCR PRIMA Tm, with its light and compact tabletop design, can be placed on a desk, shelf or anywhere space is limited. As this is a fully digital reader, neither a darkroom nor automatic processor is required.
High-Speed Processing
With the highest processing speed in its class, this model can process 73 images per hour. In addition, 40 mammography images can be processed within an hour, allowing smooth image reading
High-Quality Mammography Images
Fujifilm’s Image Intelligence™ technology automatically enables stable and optimized high-quality images.
Specification
| Standard Components | FCR PRIMA Tm (Model: CR-IR 392) | |
| Applicable Console | CR Console, Console Advance | |
| Main Connectable Imagers | DRYPIX PRIMA, DRYPIX 4000, DRYPIX 5000, DRYPIX 7000, DRYPIX Plus, DRYPIX Smart | |
| Supplies | Imaging Plate | ST-VI (standard type) 35 ✕ 43 cm (14” ✕ 17”) , 35 ✕ 35 cm (14” ✕ 14”) , 10” ✕ 12”, 8” ✕ 10”, 24 ✕ 30 cm, 18 ✕ 24 cm, 15 ✕ 30 cm |
| HR-VI (high-resolution type) 24 ✕ 30 cm, 18 ✕ 24 cm | ||
| IP Cassette | Type CC 35 ✕ 43 cm (14” ✕ 17”) , 35 ✕ 35 cm (14” ✕ 14”) , 10” ✕ 12”, 8” ✕ 10”, 24 ✕ 30 cm, 18 ✕ 24 cm, 15 ✕ 30 cm | |
| Type CH 24 ✕ 30 cm, 18 ✕ 24 cm | ||
| Type LC 35.4 ✕ 124.5 cm, 35.4 ✕ 101.7 cm, 35.4 ✕ 83.0 cm, 25.2 ✕ 58.0 cm, 24.0 ✕ 57.0 cm | ||
| Time Required for IP Feed/ Load | Min. 49 sec. | |
| Processing Capacity | Up to 73 IPs/ hr. | |
| Reading Specification | 10 pixels/ mm, 5 pixels/ mm, 20 pixels/ mm | |
| Time to Start on Display | Min. 33 sec. | |
| Time to Print on DRYPIX Smart | Approx. 165 sec. (Approx. 155 sec.)* in case of 35 ✕ 43 cm (14” ✕ 17”) | |
| Number of Stacker | 1 | |
| Network | 10 Base T/100 Base TX | |
| Dimensions (W ✕ D ✕ H) | 560 ✕ 540 ✕ 392 mm (22” ✕ 21” ✕ 15”) | |
| Weight | 39 kg (86 lbs.) | |
| Power Supply Conditions | Single phase 50 - 60 Hz AC120 - 240 V ±10% 1.9A (max) | |
| Environmental Conditions | Operating Conditions: • Temperature: 15 - 30 °C • Humidity: 15 - 80%RH (No dew condensation) • Atmospheric pressure: 750 - 1060 hPa | |
