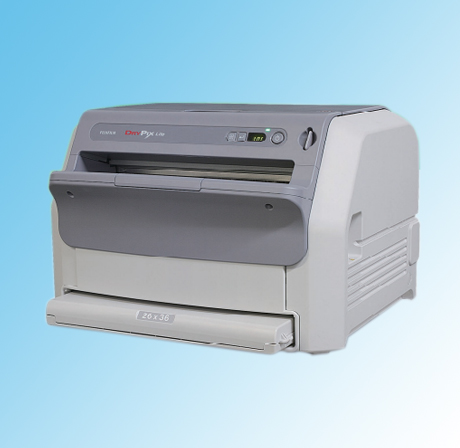

DryPix Lite
Outstanding performance, remarkable efficiency and superb quality satisfy your medical imaging need A New Concept Tabletop Dry Imager Supports Multiple Film Size Expandable to Two MagazinesSpecification
| Basic Specifications | |
| Standard Component | Fuji Medical Dry Imager DRYPIX Lite (Model: DRYPIX 2000) |
| Recording method | Thermal head transfers heat while in contact with thermal film |
| Applicable film | Fuji Medical Dry Film DI-HT 35 x 43 (14 x17), 26 x 36, 25 x 30 (10 x12), 20 x 25 (8 x10) |
| Film loading | Daylight film loading |
| DFilm magazines | Up to 2 magazines |
| Processing capacity | Approx. 50 sheets/hour 35 x 43 (14 x17), Approx. 75 sheets/hour 26 x 36, Approx. 65 sheets/hour 25 x 30 (10 x12), Approx. 90 sheets/hour 20 x 25 (8 x10) |
| Pixel size | 84.7μm (300dpi) |
| Recording gradation | 12 bits |
| Image memory | 1 GB |
| Density adjustment | Density adjustment |
| Input channels | DICOM network input x 1 channel only |
| Physical Characteristics | |
| External dimensions ( W x D x H ) | 530 x 590 x 365mm (21 x 23 x 14”) with Large magazine/ 530 x 470 x 365mm (21 x 19 x 14”) with Small magazine 180mm higher with optional sheet-feeder unit |
| Weight | 32 kg (71 lbs.) / 43 kg (95 lbs.) with optional sheet-feeder unit |
| Power supply | Input voltage: AC100-240V / Phase: Single / Frequency: 50-60Hz Rated current: 5-2A |
| Operating Environment | |
| Operating Environment | 15-30℃ |
| Humidity | 40 -70% RH (at 15℃) to 15-70% RH (at 30℃) (no dew condensation) |
